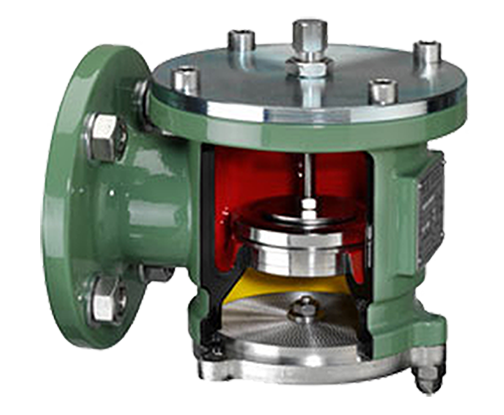

Model 936-E End-of-Line Breather Tank Vents

Vacuum Vent and Deflagration Flame Arrester

Model 936-E End-of-Line Breather Tank Vents

Performance Features

  • End-Of-Line Breather Vent with Integrated Flame Arrester
  • Vacuum Vent: Deflagration
  • EC prototype test certificate according to ATEX Directive 2014/34/EU, EN ISO 16852:2016, EN 13463-1 and EN 13463-5
  • Available in nom. Diameter: DN50 (2”) - DN200 (8”)

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

  • Gas/air or vapour/air-mixtures for explosion groups up to and including IIB3 (NEC Group D), MESG ≥ 0.65mm

Connection Type

  • ISO 7005 PN10
  • ANSI B16.5 – 150 RF
  • Other types available upon request

Compliance with Guidelines

  • ATEX 2014/34/EU
  • EN ISO 16852:2016

Materials of Construction

  Stainless Steel Hastelloy Ductile Iron Other Materials on request
Metal Foil Element ✓ ✓ ✓
Housing of Metal Foil Element ✓ ✓   ✓
Body / Cover ✓   ✓ ✓

Painting Options Available

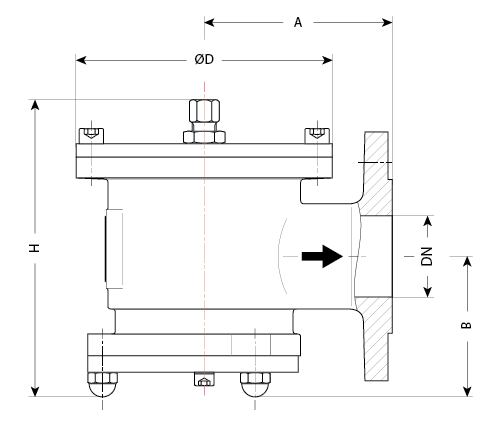

Dimensions

DN A  B ØD H
in mm in mm in mm in mm in mm
2 50   125   95   170   200
3 80   160   107   225   265
4 100   163   119   225   290
6 150   210   140   320   310
8 200   248   165   375   355







Product Literature

Model 936-E Brochure

Installations

Model 936-E – 50 to 200/1x0.9/IIB3P1T1
