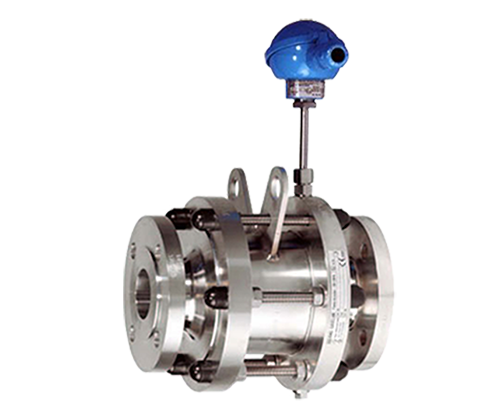

Model 933-S Inline Flame Arrester

Model 933-S Inline Flame Arrester

Performance Features

In-line deflagration arrester / inline detonation arrester
Stable / Unstable detonation
Short time burning
Low pressure drop
Various options available for high operating pressure and temperature
EC prototype test certificate according to ATEX Directive 2014/34/EU and EN ISO 16852:2016
Available in nom. Diameter: DN50 (2”) – DN600 (24”)
Additional sizes available on request

Request a Quote

Specification Options
Materials
Documentation

Protection

Gas/air or vapour / air-mixtures for explosion groups up to and including IIC (NEC Group B), MESG < 0.5mm
Temperature Sensor – resistance thermometer with protection type
- Inherently safe (EEx i)
- Pressure Resistant Enclosure (EEx d)

Connection Type

ISO 7005-1
ASME B16.5
ANSI B16.5
Other types available upon request

Compliance with Guidelines

ATEX 2014/34/EU
EN ISO 16852:2016

Materials of Construction

	Carbon Steel	Stainless Steel	Hastelloy	Ductile Iron	Other Materials on request
Metal Foil Element		✓	✓		✓
Housing of Metal Foil Element		✓	✓		✓
Body / Cover	✓	✓		✓	✓

Painting Options Available

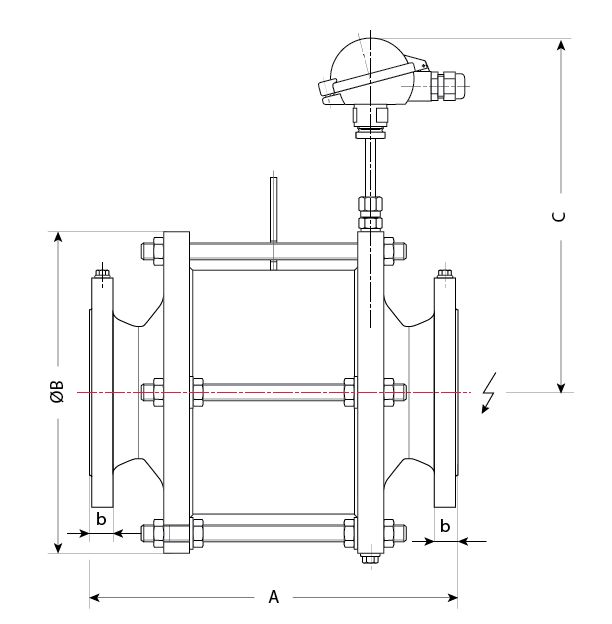

Dimensions

DN		N=2		N=3		N=4		N=5		N=6		N=7		N=8		ØB		C		b		N=2	N=3	N=4	N=5	N=6	N=7	N=8
DN		A*														ØB		C		b		Weight
in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	in	mm	kg	kg	kg	kg	kg	kg	kg
1.5	40		215		227		239		252		264		276		288		206		290		18	19	21	22	24	26	28	30
2	50		235		248		260		272		284		296		309		226		300		19	22	22	25	27	29	31	33
2.5	65		240		252		265		277		289		301		313		272		320		20	34	34	38	40	43	45	47
3	80		265		277		289		302		314		326		338		308		340		22	42	45	47	50	52	55	57
4	100		280		292		304		317		329		341		353		368		370		24	56	61	66	71	76	80	84
5	125		288		300		312		324		336		349		361		308		340		20.5	43	44	46	49	51	53	55
6	150
8	200
10	250
12	300
14	350
16	400

* N: number of metal foil elements
