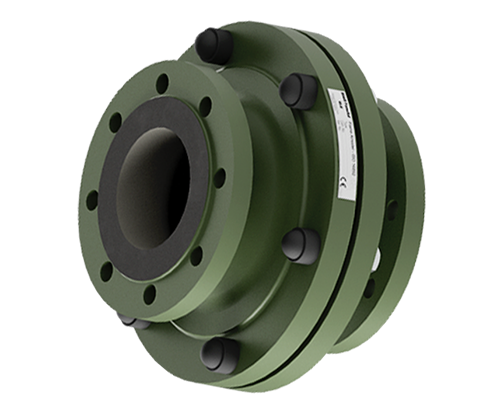

Model 931-CA Inline Flame Arrester

Inline Deflagration Flame Arrester/Inline Detonation Arrester

Model 931-CA Inline Flame Arrester

Performance Features

  • In-line deflagration arrester
  • Short term burning and endurance burning variations available
  • EC prototype test certificate according to ATEX Directive 2014/34/EU and EN ISO 16852:2016
  • Available in nom. diameter: DN50 (2”) – DN200 (8”)
  • Simplified design minimizes the maintenance and spare parts requirements.

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

  • Gas/air or vapour / air-mixtures for explosion groups up to and including IIA (NEC Group D)
  • Suitable for endurance burning for explosion group IIA1

Connection Type

  • EN or DIN: ISO 7005-1
  • JIS B 2220
  • ASME B16.5

Compliance with Guidelines

  • ATEX Directive 2014/34/EU
  • EN ISO 16852:2016

Materials of Construction

  Carbon Steel Stainless Steel Hastelloy Other Materials on request
Body ✓
Metal Foil Element ✓ ✓ ✓ ✓
Seal NBR, FPM, EPDM, FEP   ✓

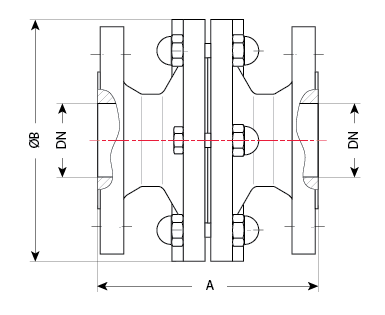

Dimensions

DN A B Weight
in mm in mm in mm kg
  50   160   175 11.4
  65   170   210 15.2
  80   190   230 18.5

Product Literature

Model 931-CA Brochure

Installations

Model 931-CA – 100 to 200/0720/IIAP1T1
Model 931-CA – 50/0720/IIAP1T1 to 80/0720/IIAP1T2
Model 931-CA – 50/0720/IIAP2T1 to 80/0720/IIAP1T1
