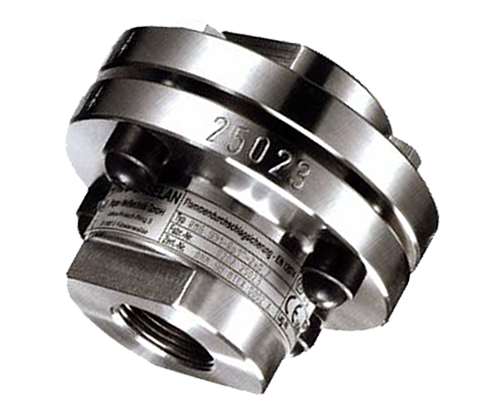

Model 931 Inline Flame Arrester

Inline Deflagration, Stable and Unstable Detonation Endurance Burning

Model 931 Inline Flame Arrester

Performance Features

  • Tube protection against deflagration
  • Tube protection against detonation
  • Protection against continuous fire
  • Available in nom. Diameter: DN8 (1/2”) – DN32 (1 1/4”)

Request a Quote

  • Specification Options
  • Materials
  • Documentation

Protection

Gas/air or steam/air mixtures of the following explosion groups:
  • I (methane) NSW = 1.14 mm
  • IIA (D) NSW = 0.90 mm

Connection Type

  • Rp to ISO 7-1 (DIN 2999)
  • BSP to BS 21
  • NPTF to ANSI B1.20.3

Compliance with Guidelines

EC type examination certificate based on to directive 94/9/EC, according to ATEX 95 and ISO 16852

Materials of Construction

  Carbon Steel Stainless Steel Other Materials on request
Metal Foil Element ✓ ✓
Body / Cover ✓ ✓ ✓

Painting Options Available

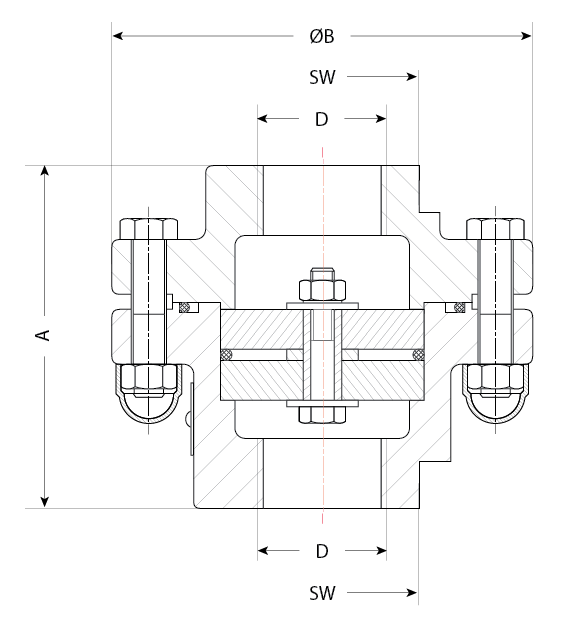

Dimensions

D A ØB SW Weight*
in mm in mm in mm in mm kg
0.25 8   80   88   30 1.5
0.375 10   80   88   30 1.5
0.5 15   82   95   30 2
0.75 20   87   108   50 2.8
1 25   87   108   50 2.8
1.25 32   110   118   50 3.2

* Dependent on set pressure
