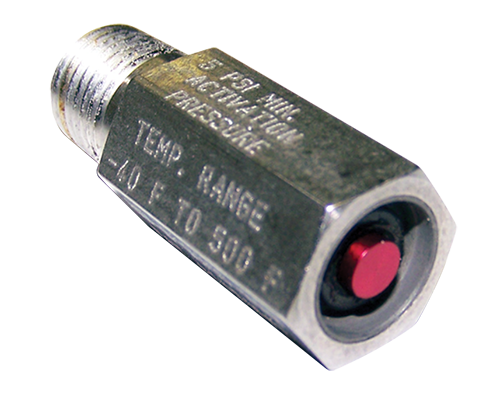

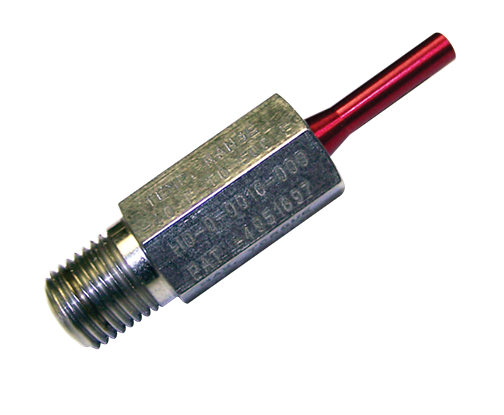

Vis-U-Tec™ Free venting disk
For larger disk sizes, consult BS&B. The maximum burst pressure is 2,000 psig (137.89barg). Values are based on using a free vented outlet flange with no down stream piping.
* Do not use BAS+ series sensor when installed in S90-7R safety head
BS&B supplies many of the Accessories required to safely and conveniently install our overpressure relief devices and complementary products. Through our professional team and global network of sales engineers and procurement personnel, we are able to provide the highest quality accessory products to meet your installation requirements.
After activation, the replacement disk is quickly slid into place. Saving hours of lost production due to blown rupture disks.
A gauge tap in the outlet flange of the safety head may be considered when the safety head is installed in a vertical position.
When activated, the jackscrews effectively separate the flanges, providing adequate clearance to remove or insert a safety head and external gaskets.
Eye bolts are recommended when weight and/or accessibility is a factor in lifting safety heads.
When a safety head is free-vented to atmosphere, a baffle plate may be considered to disperse overpressure and absorb recoil.

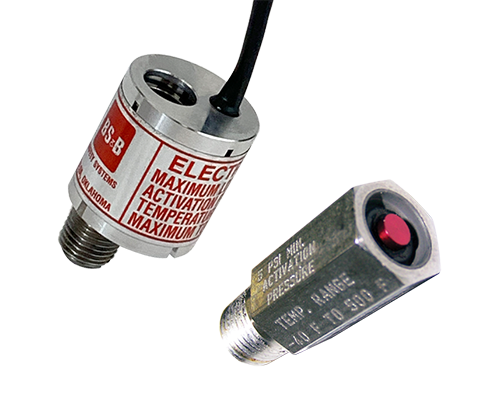

A range of sensors suitable for different rupture disk types used to provide immediate warning of a ruptured disk., #77-1003

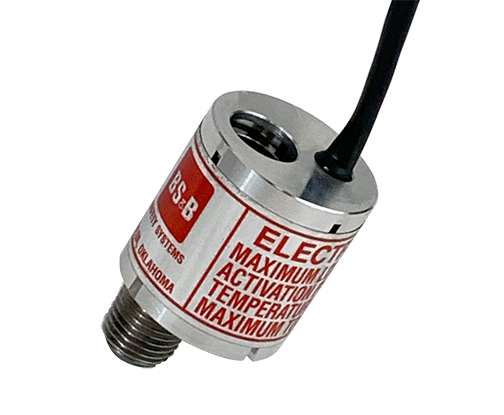

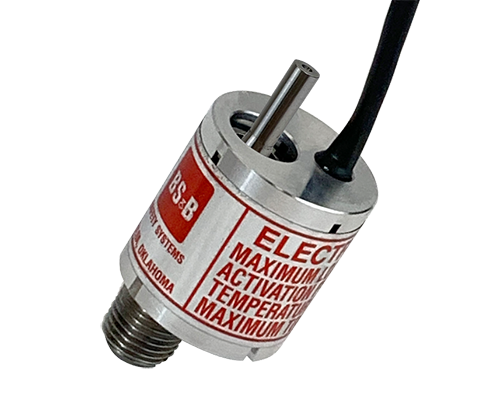

A sensor used to provide an electrical signal and visual warning of a ruptured disk.
Detec-Saf™ alarm system provides immediate warning and specific location of disk rupture and centralized monitoring of all disk locations.
